I am using the above configuration. When using the GX4816 with a DX168, where do the DX168 outputs show up in the Slink bank? What Slink outputs are associated with the DX168 outputs?
The DX I/O will show up on the same routing page as the GX4816 I/O. However the source numbers are different. The GX4816 will use inputs 1-48 and outputs 1-16. A DX box connected to the GX4816 via the DX1 port will use inputs 65-80 and outputs 65-72. A DX box connected to the GX4816 via the DX2 port will use inputs 97-1120 and outputs 97-104.

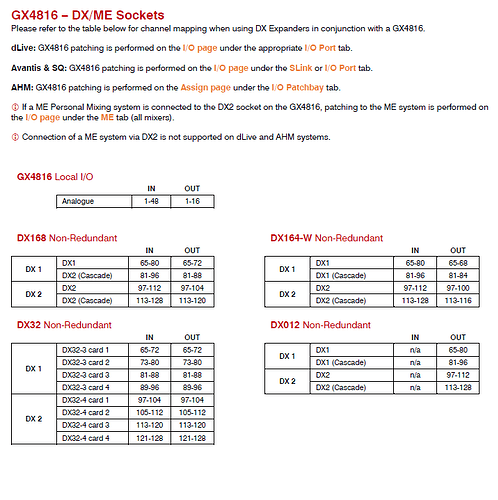

The entire list of I/O for connected boxes can be found on page 20 of the DX-GX System Guide which can be downloaded here.
1 Like
Awesome! Thanks for the info!!!
